Description
CHARACTERISTICS

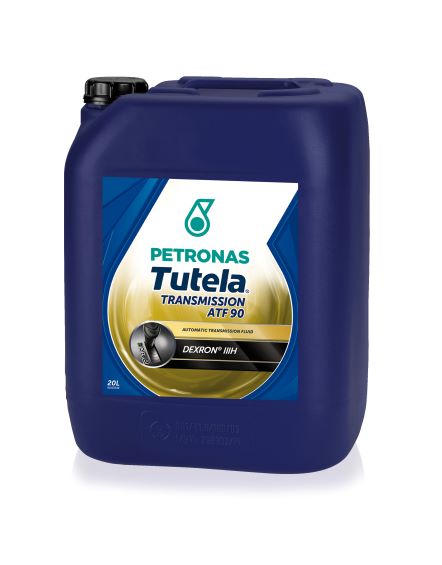

TUTELA TRANSMISSION ATF 90 DEXTRON III is fully synthetic lubricating oil for hydraulic automatic transmissions operating in strict conditions.
- Particular ATF additives raises the characteristics of extreme fluidity in cold starting and under high temperatures;
- Optimal detergent characteristics guarantee the perfect cleaning of the mechanical parts;
- Excellent properties of heat removal in the transmission components.
- Fully synthetic formulation to ensure excellent thermal-oxidative resistance, therefore prolonging the period between oil changes.
Tutela ATF 90 is approved for ZF Ecomat.
ADVICE ON USE: Replacement intervals as indicated by Manufacturer.
RECOMMENDED BY: IVECO – IRISBUS
SPECIFICATIONS
ATF DEXRON III, IVECO 18-1807 CLASSE AG3/I,CONTRACTUAL TECHNICAL REF. N°I001.B14, ZF TE-ML 04D, ZF TE-ML 09, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 17C, VOITH 55.6336, ALLISON C4 Performance, MAN 339 TYPE Z2 and V2 Performance, VOLVO 97341 Performance
TECHNICAL DATA
| TEST DESCRIPTION | METHOD | UNIT | TYPICAL VALUE |
| APPEARANCE | — | — | BRIGH & CLEAR |
| COLOR | — | — | RED |
| DENSITY AT 15°C | ASTM D 4052 | g/cm³ | 0,850 |
| VISCOSITY AT 100°C | ASTM D 445 | cSt | 7,1 |
| VISCOSITY INDEX | ASTM D 2270 | — | 181 |
| VISCOSITY AT -40°C | ASTM D 2983 | cPs | 11000 |
| FLASH POINT Cl. O. C. | ASTM D 92 | °C | 210 |
| POUR POINT | ASTM D 97 | °C | -51 |
All technical data is provided for reference only.
