Description
CHARACTERISTICS

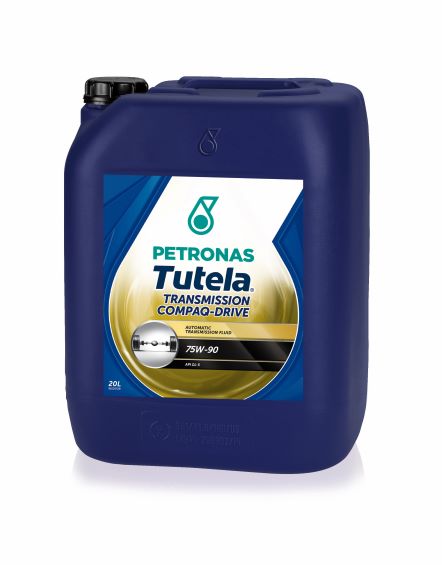

TUTELA TRANSMISSION COMPAQ–DRIVE 75W90 is fully synthetic multigrade lubricant designed for the rear axle of 4WD vehicles operating under severe conditions.
Excellent cold flow properties thanks to its low temperature fluidity.
- Optimised frictional characteristics particularly with carbon friction plates.
- This lubricant is recommended on FCA Group vehicles.
It meets the FIAT 9.55550-DA7 specification requested for use on rear differential of JEEP RENEGADE and FIAT 500 X models.
SPECIFICATIONS
SAE 75W-90, API GL 5, FIAT 9.55550-DA7 CONTRACTUAL TECHNICAL REF. N°F007.B14
TECHNICAL DATA
| TEST DESCRIPTION | METHOD | UNIT | TYPICAL VALUE |
| APPEARANCE | — | — | Clear & Homogeneus |
| DENSITY AT 15°C | ASTM D 4052 | g/cm³ | 0.877 |
| VISCOSITY AT 100°C | ASTM D 445 | cSt | 13,8 |
| VISCOSITY INDEX | ASTM D 2270 | — | 170 |
| FLASH POINT Cl. O. C. | ASTM D 92 | °C | 218 |
| POUR POINT | ASTM D 97 | °C | -54 |
| FOAMING AT 24°C | ASTM D 892 | cc/s | Traces/0 |
| FOAMING AT 94°C | ASTM D 892 | cc/s | Traces/0 |
| FOAMING AT 24°C AFTER 94° C | ASTM D 892 | cc/s | Traces/0 |
All technical data is provided for reference only.
