Description
CHARACTERISTICS

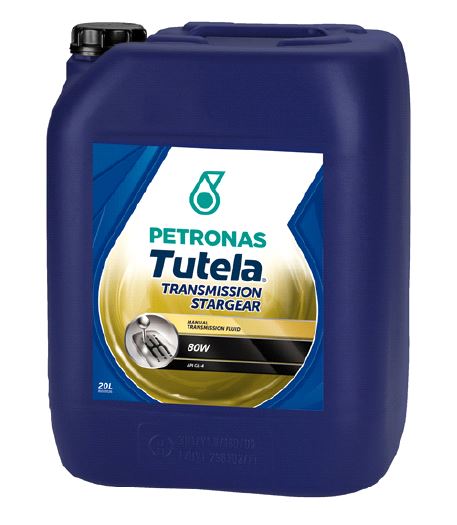

TUTELA TRANSMISSION STARGEAR 80W is synthetic-based fluid for manual transmission. The modern formulation allows the use on a wide range of manufacturers.
- High anti-wear capacity
- High oxidation stability
- High chemical stability and resistance to mechanical cutting
- Anti-Rust characteristics for maximum protection of the gears
ADVICE ON USE: Drain intervals according to the manufacturer’s instructions.
SPECIFICATIONS
SAE 80W, API GL 4, MB-Approval 235.1, ZF TE-ML 02B, ZF TE-ML 17A, MAN 341 Type E1, MAN 341 Typ Z2
TECHNICAL DATA
| TEST DESCRIPTION | METHOD | UNIT | TYPICAL VALUE |
| APPEARANCE | | | B&C |
| COLOR | | | AMBER |
| DENSITY AT 15°C | ASTM D 4052 | g/cm³ | 0.885 |
| VISCOSITY AT 100°C | ASTM D 445 | cSt | 10.7 |
| VISCOSITY AT 40°C | ASTM D 445 | cSt | 91 |
| VISCOSITY INDEX | ASTM D 2270 | | 101 |
| VISCOSITY AT 26°C | ASTM D 2983 | cPs | 81000 |
| POUR POINT | ASTM D 97 | °C | 27 |
| FLASH POINT Cl. O. C. | ASTM D 92 | °C | 210 |
| BOILING POINT | ASTM D 1120 | °C | >250 |
| CORROSIVENESS TO COPPER (3 h /150°C) | ASTM D 130 | | 1b |
| FOAMING AT 24°C | ASTM D 892 | cc/s | Traces/0 |
All technical data is provided for reference only.
